| Size: | |
|---|---|
| Quantity: | |

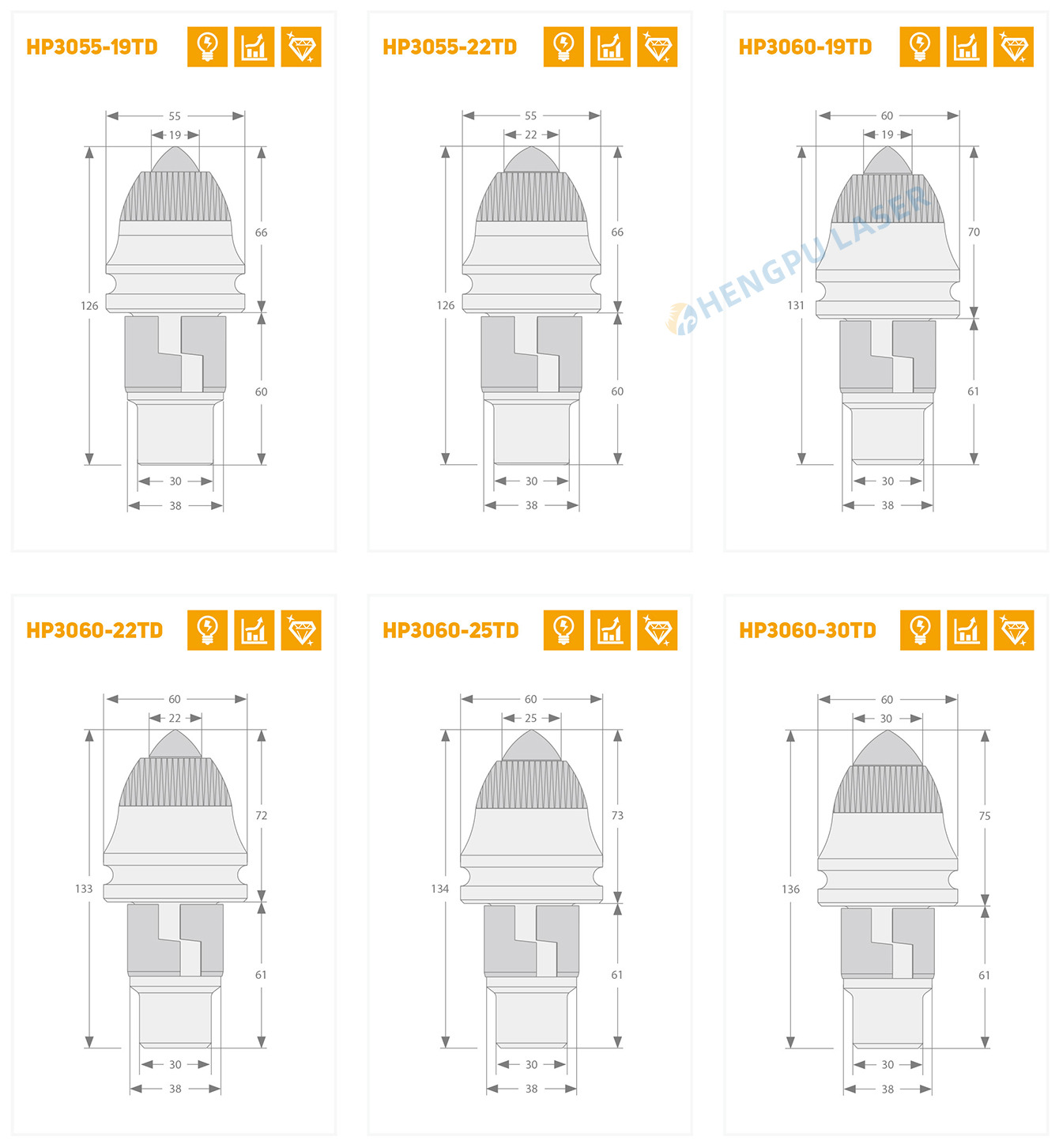

| Model | Alloy type | Features of tooth head | Cutting conditions | Circlip | Handle | |||||||||
| Column | Mushroom | Hat | Jump ring | Snap ring | Retaining ring | Diameter | Length | |||||||
| HP3055-19TD | ● | Wear resistant | 0-50 MPa | ● | 30mm | 126mm | ||||||||
| HP3055-22TD | ● | 50-100 MPa | ● | 30mm | 126mm | |||||||||
| HP3060-19TD | ● | 0-50 MPa | ● | 30mm | 131mm | |||||||||
| HP3060-22TD | ● | 50-100 MPa | ● | 30mm | 133mm | |||||||||
| HP3060-25TD | ● | 100-150 MPa | ● | 30mm | 134mm | |||||||||
| HP3060-30TD | ● | >150 MPa | ● | 30mm | 136mm | |||||||||
| Model | Packaging Method | Number of Packages | Weight/Box | Whole Pallet Box | Whole Pallet Weight |
| HP3055-19TD | Box | 15 | 18.6KG | 60 Box | 1116KG |
| HP3055-22TD | Box | 15 | 19KG | 60 Box | 1140KG |
| HP3060-19TD | Box | 15 | 21.25KG | 60 Box | 1275KG |
| HP3060-22TD | Box | 15 | 21.3KG | 60 Box | 1278KG |
| HP3060-25TD | Box | 15 | 22.3KG | 60 Box | 1338KG |
| HP3060-30TD | Box | 15 | 24.2KG | 60 Box | 1452KG |
Our rotary excavator picks/rotary cutting picks are engineered for installation on rotary drilling equipment such as rotary drilling rigs and double-wheel milling machines, used for bored pile foundation engineering to form holes through rotary excavation. They offer broad compatibility with leading global brands, including BAUER, Soilmec,Liebherr, Casagrande, Mait, SANY, XCMG, Zoomlion, Sunward and CRRC.
These picks are extensively utilized across a wide range of rotary excavating engineering applications, such as:
Highways: Provides efficient rock breaking and soil penetration for roadbed reinforcement and sound barrier foundations.
Bridges: Engineered for deep-hole drilling in complex riverbed geologies to ensure stable large-diameter bored piles.
Railways: Delivers high-precision excavation for high-speed rail piers and viaduct supports across varied terrains.
Water conservancy: Facilitates the construction of anti-seepage walls, dam foundations, and irrigation canal supports.
Urban construction: Ideal for building foundation piles, subway stations, and underground parking lot diaphragm walls.

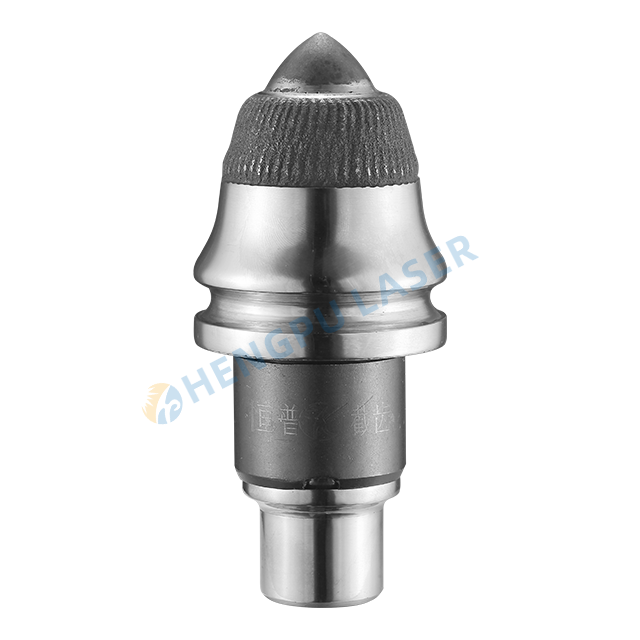

The Hengpu series rotary excavator picks/rotary cutting picks integrate a premium tungsten carbide alloy tip with a high-strength 42CrMo steel shank, which undergoes a quenching process for superior durability. Our patented innovation lies in the 3D laser-printed ceramic wear-resistant layer.
Advanced Material: Achieving a remarkable hardness of 68-70 HRC.
Superior Bonding: Utilizing a breakthrough metal-ceramic atomic bonding technology, the layer forms an exceptionally tight bond between the tip and shank. This significantly reduces wear at the critical junction point.
Enhanced Durability: The wear-resistant layer excels on hard geology, offering outstanding abrasion resistance.
By increasing excavating depth while reducing the frequency of tooth replacements, the Hengpu series minimizes labor costs and machine downtime, ultimately maximizing project efficiency and lowering total operating expenses.
Hengpu is a pioneer in industrial wear resistance technology. We have overcome the long-standing industry challenge of balancing extreme hardness with exceptional toughness.
Technical Breakthrough: Our proprietary process solves the interface bonding difficulties between ceramic particles and the metal matrix. This enables 3D printing of wear layers using over ten types of ceramics (including Al₂O₃, ZrO₂, and SiC) with thicknesses up to 4mm.
Optimized Design: The laser-printed layer features 3D raised and recessed structures that ensure even surface wear distribution, precisely matching the designed service life.
Quality Assurance: The entire manufacturing process adheres to stringent international standards, with each tool certified under ISO9001:2008 and GJB9004B-2009 to guarantee stability and reliability.
Innovative Bionic Design: Inspired by pangolin scales, our proprietary wear-resistant technology creates a bionic structure where the ceramic layer fuses deeply (≥1mm) with the substrate. This represents a significant leap forward in material science.
Perfect Hardness-Toughness Balance: The atomic bonding technique merges the hardness of ceramics with the toughness of metal, delivering unparalleled performance, especially on hard geology.
Customizable Solutions: Available in various models (e.g., HP3055-19TD, HP3055-22TD, HP3060-19TD, HP3060-22TD, HP3060-25TD) with handle diameters of 30mm-38mm. Custom lengths are available to meet specific equipment requirements.
High-Temperature & Abrasion Resistance: The laser-printed ceramic layer withstands high temperatures and severe abrasion, extending tool life and ensuring superior performance in the most demanding construction environments.
Rapid & Reliable Supply: Manufactured in mature industrial workshop systems to ensure fast delivery without compromising on strict quality control.
Q: What is Hengpu Laser's background?
A: Hengpu Laser is a high-tech company founded in 2013 by a team of US-educated PhDs.
The founder, Dr. Liu Dejian, conducted extensive welding research at Ohio State University and has published numerous articles in international journals.
The company is a leader in China's ceramic 3D printing sector, specializing in the industrialization of industrial laser 3D printing technology. Recognized as a national-level "Specialized, Refined, and Unique" (Little Giant) enterprise.
Hengpu has successfully developed over 30 products for mining, subway tunnels, oil exploration, and infrastructure, establishing itself as a rapidly emerging brand in engineering cutting tools.
Q: Which machines are these rotary excavator picks/rotary cutting picks compatible with?
A: They are primarily compatible with rotary drilling equipment such as rotary drilling rigs and double-wheel milling machines.
Q: What is the thickness of the wear-resistant layer?
A: Our 3D-printed ceramic wear-resistant layer can be up to 4mm thick, providing exceptional wear resistance.
Q: What are the product packaging specifications?
A: Products are primarily packed in boxes. For example, model HP3055-19TD is packed 15 pieces per box (18.6KG per box), with 60 boxes per full pallet. Please refer to the specific packaging parameters for each model.
Q: Do you offer custom services?
A: Yes, we provide personalized milling pick solutions tailored to your specific equipment and working condition requirements.
