Common Causes Of Rotary Drilling Pick Failure In Pile Foundation Projects

In pile foundation construction, rotary drilling rigs often work under complex strata, high torque, strong impact, and strict schedule pressure. However, the real cutting battle is completed by a small component at the bottom of the drilling tool: the rotary drilling pick.

Once the pick fails prematurely, the loss is not limited to the broken tool itself. Frequent replacement means rig downtime, delayed hole-forming progress, higher fuel consumption, unstable drilling quality, and even potential risks to the following concrete pouring schedule.

Therefore, understanding why rotary drilling picks fail is not only a maintenance issue. It is an important step in controlling foundation project cost, improving drilling efficiency, and reducing construction risk.

1. Geological Mismatch: The First Cause of Premature Pick Failure

Pile foundation projects often face highly variable underground conditions. Clay, sand, gravel, sandstone, weathered rock, cobbles, granite, and basalt may appear in the same construction area. If the pick type is not matched to the actual strata, failure can happen much earlier than expected.

In high-abrasion formations such as sandstone and quartzite, abrasive particles continuously grind the steel body around the carbide tip. This causes body washout. Once the supporting steel is worn away, the carbide insert loses protection and may fall off even before it is fully worn.

In cobble and boulder layers, the main risk is not slow wear but sudden impact. When a brittle carbide grade hits hard stones repeatedly, the tip may crack, chip, or shatter directly.

In high-UCS rock such as granite or basalt, friction heat rises sharply. If drilling parameters and cooling conditions are not properly controlled, thermal fatigue can damage the brazing area and create micro-cracks inside the carbide tip.

The correct pick is not simply the hardest pick. It must balance wear resistance, impact toughness, and body protection according to real geological conditions.

2. Manufacturing Quality: Small Defects Create Big Jobsite Losses

A rotary drilling pick may look simple from the outside, but its actual performance depends on carbide quality, brazing strength, steel body toughness, heat treatment, and dimensional precision.

Among all manufacturing problems, brazing failure is one of the most common causes of early tip loss. If the brazing layer is too thin, uneven, or made with low-quality alloy, it cannot absorb high-frequency impact during drilling. The carbide tip may detach suddenly, leaving the steel body to grind directly against hard rock.

Carbide quality is equally important. Tungsten carbide must maintain a proper balance between hardness and toughness. If the carbide is too hard but lacks toughness, it may fracture under impact. If it is too soft, it may wear too fast in abrasive strata.

The steel body also determines service life. Poor heat treatment can make the body either too soft or too brittle. A soft body deforms under heavy pressure, while a brittle body may crack under sudden loads. Both conditions can prevent the pick from rotating smoothly in the holder, leading to one-sided wear and rapid failure.

3. Operational Overload: When Rig Parameters Exceed Pick Capacity

Even a high-quality pick can fail quickly if drilling parameters are not properly controlled. In many pile foundation projects, premature tool failure is not caused by the tool alone but by the mismatch between rig operation and pick capacity.

Excessive crowd pressure is a typical problem. When the operator pushes the drilling tool too aggressively, the carbide tip is forced to bear crushing loads instead of performing efficient cutting. This may lead to tip breakage, body deformation, or holder damage.

Incorrect rotary speed is another hidden cause. High RPM in hard rock generates severe friction heat. The temperature rise may weaken the brazing area and accelerate carbide cracking. In dense rock, lower speed and stable torque are often more effective than blind high-speed rotation.

Poor cleaning and maintenance also shorten tool life. Rotary drilling picks must rotate freely in the holder to achieve even wear. If mud, sand, or broken particles block the holder, the pick may become fixed in one direction. Once rotation stops, flat-spotting appears quickly and the tool loses its cutting efficiency.

Tool performance must always be evaluated together with operating habits. Good tools and correct parameters work as one system.

4. Hidden Project Costs Caused by Pick Failure

Premature pick failure creates a chain reaction across the entire foundation drilling process. A broken pick may seem like a small problem, but its economic impact can quickly expand.

First, every replacement requires the rig to stop. For large rotary drilling rigs, even short downtime means significant equipment idle cost.

Second, worn tools reduce penetration efficiency. The rig consumes more fuel and power but drills fewer meters, directly increasing the cost per drilled meter.

Third, unstable cutting may affect hole quality. Tool deflection, uneven cutting resistance, and repeated stoppages can increase the risk of hole deviation or poor borehole condition.

Finally, frequent tool failure disrupts the construction rhythm. In pile foundation work, drilling, cleaning, reinforcement cage placement, and concrete pouring are closely connected. Once the drilling stage becomes unstable, the entire workflow may be affected.

This is why the value of a rotary drilling pick should not be measured only by unit price. The real standard should be cost per drilled meter, drilling stability, and schedule protection.

5. How To Reduce Rotary Drilling Pick Failure

Reducing pick failure requires a systematic approach rather than blind replacement. Site teams should first examine discarded tools and identify the real failure pattern.

If the steel body is severely washed away, the main problem is likely abrasive wear. A pick with stronger body protection or wear-resistant reinforcement should be considered.

If the carbide tip is shattered, impact toughness may be insufficient, or crowd pressure may be too high.

If the tip falls off while still mostly intact, the brazing quality or thermal condition should be checked.

If one side of the pick is flat, the holder may be dirty, worn, or preventing proper rotation.

A practical improvement process should include:

• Checking strata characteristics before tool selection.

• Recording failure modes of used picks.

• Matching carbide grade to abrasion and impact level.

• Keeping holders clean to ensure free rotation.

• Adjusting crowd pressure and RPM according to rock hardness.

• Comparing tools by cost per drilled meter rather than purchase price.

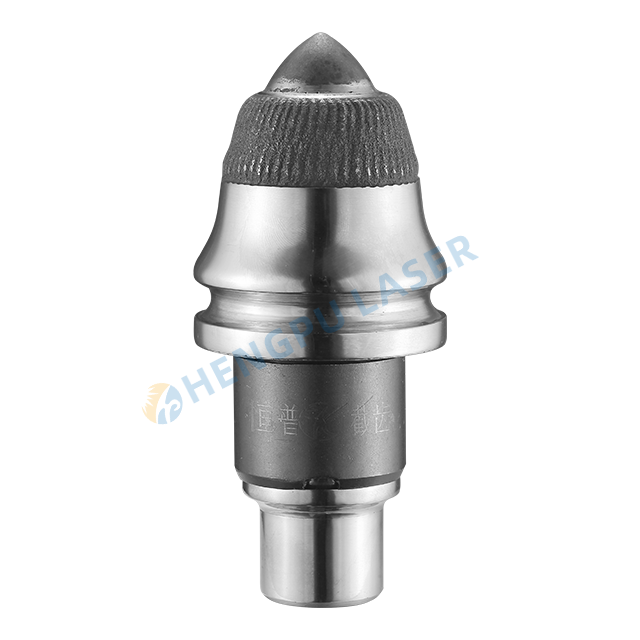

For demanding pile foundation projects, Hengpu Laser rotary drilling picks can support longer service life through optimized material selection, wear-resistant technology, and stronger adaptation to complex strata. Instead of only replacing failed tools, contractors can use more reliable picks to improve the stability of the whole drilling process.

Conclusion: Pick Failure Is A Warning Signal From The Jobsite

In pile foundation construction, rotary drilling pick failure is rarely accidental. It usually reflects deeper problems in geology matching, manufacturing quality, drilling parameters, or maintenance management.

A small failed pick can cause rig downtime, higher fuel consumption, delayed progress, poor hole quality, and increased project cost. Therefore, contractors should treat pick failure as an important technical signal rather than a simple consumable loss.

Choosing the right rotary drilling pick means choosing more stable drilling efficiency, better equipment protection, and stronger control over foundation project costs.
