Shearer Picks & Roadheader Cutting Picks: A Metallurgical White Paper on Failure Prevention & Cost-Per-Ton Optimization

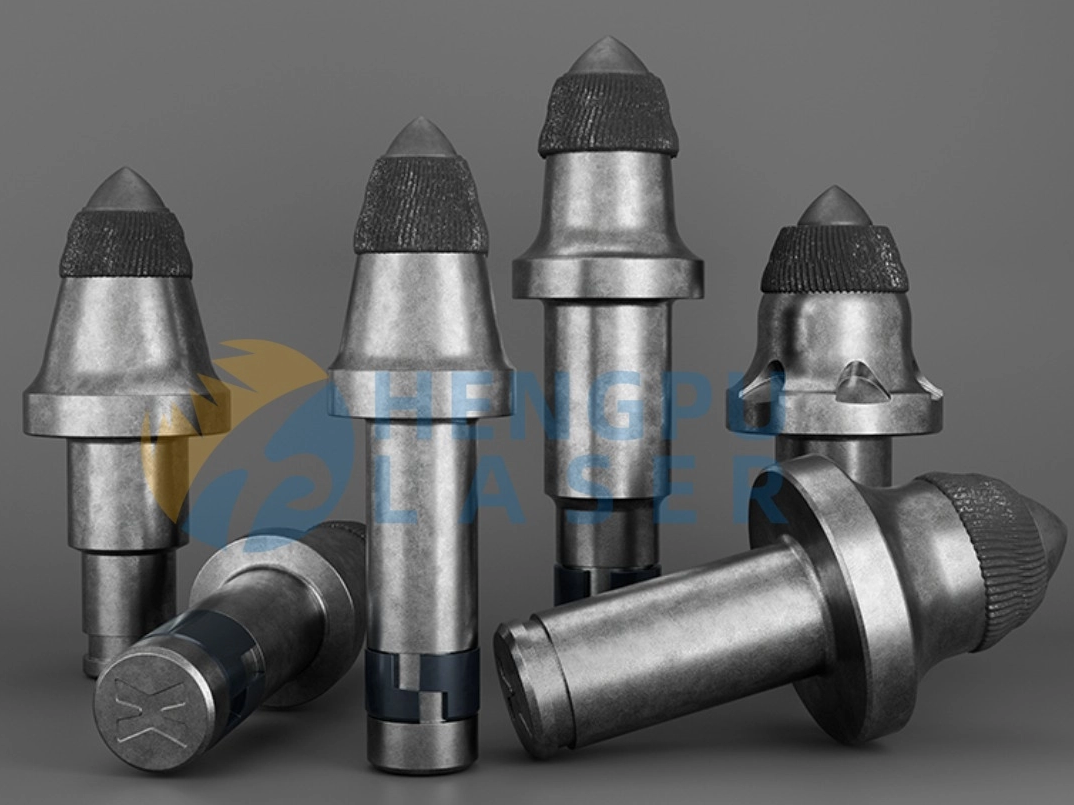

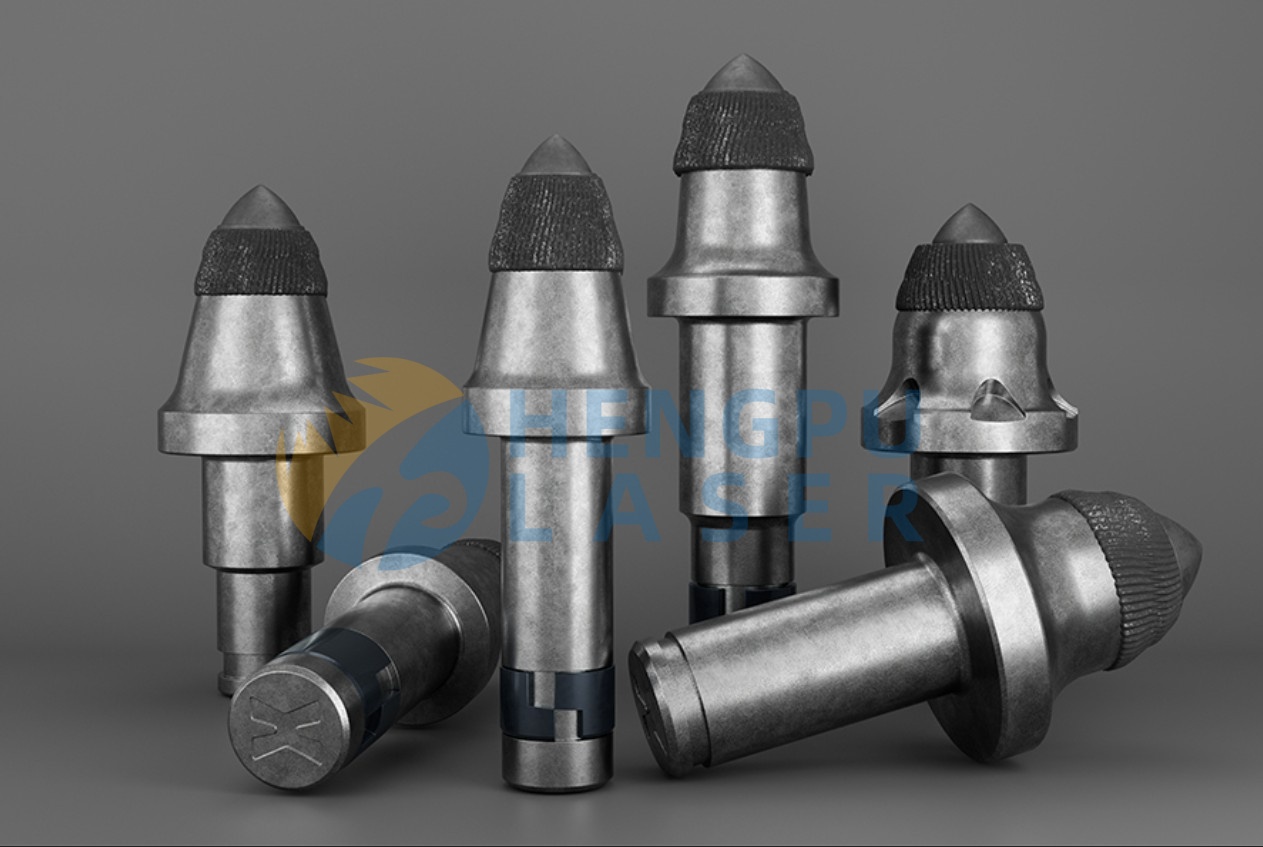

In underground coal mining and soft-to-hard rock tunneling, continuous miners, longwall shearers, and roadheader machines operate in some of the most punishing mechanical environments on earth. At the business end of these massive, multi-ton cutting drums and cutter heads are hundreds of conical cutting tools—specifically Shearer Coal Mining Picks and Roadheader Cutting Picks (also widely known as bullet bits, cutter teeth, or mining picks).

These heavy-duty tools face a relentless combination of extreme cyclic impact shock, high frictional heating, and intense quartz sand abrasion. When a pick fails prematurely underground—whether through carbide tip snapping, braze joint shearing, or steel shank erosion—the consequences ripple throughout the entire mining operation. Tool failure leads to unscheduled machine stops, increased dynamic vibration across cutter drums, damage to expensive pick boxes (toolholders), spiked electrical/fuel consumption, and rapidly inflating cost-per-ton (CPT) metrics.

To assist mining engineers, mine maintenance directors, and equipment procurement managers in maximizing cutting productivity, this technical white paper provides an in-depth analysis of shearer and roadheader pick mechanics, examines primary failure modes, evaluates surface metallurgy innovations, and demonstrates how Advanced Laser Cladding Technology redefines tool longevity in high-abrasion underground extraction.

1. Shearer Picks vs. Roadheader Picks: Operating Dynamics & Geotechnical Demands

While both tools feature a conical shank design with a cobalt-bonded tungsten carbide insert (WC-Co), shearer picks and roadheader picks are engineered for fundamentally different cutting dynamics and geological challenges.

Shearer Picks (Longwall Mining)

Mounted on rotating longwall shearer drums, shearer picks slice through coal seams at high rotational velocities. The primary operational challenge is resisting sandblasting slurry abrasion. As coal fine dust, water, and pulverized quartz sand sweep backward across the cutter drum, they act like a high-pressure sandblaster against the forged steel shank directly beneath the tungsten carbide tip.

Roadheader Picks (Tunneling & Roadway Excavation)

Roadheader cutter heads operate in confined underground tunnels, excavating varying rock geologies—ranging from soft coal to highly abrasive sandstone, mudstone, and limestone. Because roadheader heads swing axially or transversely into solid rock faces, these picks endure violent, non-concentric shock loads and heavy lateral bending forces that test the structural integrity of the steel shank and braze joint.

2. Comprehensive Anatomy of Tool Failure Modes in Underground Mining

Understanding the root physical and metallurgical causes of pick degradation on the working face is the foundation of effective wear management and tooling specification.

A. Steel Shank Erosion ("Body Washout")

The cobalt-bonded tungsten carbide tip (WC-Co) possesses extraordinary hardness (≥HRA86). However, the underlying forged alloy steel shank (typically 42CrMo) is vastly softer (HRC40-45). In seams containing high quartz fractions, abrasive slurry strips away the steel shoulder supporting the carbide insert base. Once the braze joint loses its supporting steel matrix, normal cutting impacts snap the carbide tip off—leaving up to 80% of unused, expensive carbide behind on the mine floor.

B. Carbide Tip Micro-Chipping and Macro-Fracture

During heavy rock cutting, repetitive dynamic impacts induce micro-cracks along cobalt grain boundaries inside the tungsten carbide matrix. If the steel shank experiences thermal softening (annealing) during tool manufacturing or high-friction cutting, the shank flexes under shock. This bending deflection transmits bending moments into the brittle carbide insert, causing catastrophic macro-fracture.

C. Rotation Lockup and Asymmetrical Wear (Flat-Spotting)

For a conical mining pick to achieve a self-sharpening wear profile, it must continuously rotate 360 degrees within its retainer sleeve inside the pick box. Fine mineral slurry and coal dust frequently pack tight into the sleeve clearance gap, locking the shank in place.

• When rotation stops, cutting forces strike a single, fixed face of the tool.

• A flat surface forms on the carbide tip within minutes (flat-spotting or single-sided wear).

• Unspinning picks create immense out-of-balance vibration across the cutter head, increase machine power consumption, and deform the internal pick box bore into an oval shape (bore ovalization).

3. Surface Metallurgy Innovation: Laser Cladding vs. Traditional Protection Methods

To protect the steel shank from abrasive washout without embrittling the tool's core forged steel matrix, modern mining tool manufacturing has evolved from arc welding overlays to Precision High-Speed Laser Cladding Technology.

The Laser Ceramic 3D Printing Advantage:

1. Ultra-Low Heat Input Preserves Steel Toughness: Laser cladding utilizes a computer-controlled, high-power density laser beam to instantly generate a micro-melt pool on the steel shank while injecting specialized metal-ceramic powder (such as spherical tungsten carbide particles dispersed in a tough nickel- or cobalt-based matrix). Because heat application lasts only milliseconds, the underlying heat-treated steel shank suffers zero annealing or loss of impact toughness.

2. Low Dilution (< 5%) Yields Maximum Hardness: Traditional arc welding melts deep into the base steel, diluting the hardfacing alloy by up to 25%. Laser cladding achieves a true metallurgical bond with minimal dilution, ensuring the protective ring maintains its maximum wear resistance directly at the outer working surface.

3. Concentric CNC Geometry Ensures Active Pick Rotation: The automated laser process creates a perfectly uniform, smooth hardfaced ring around the pick shoulder. This smooth geometry prevents coal slurry accumulation and maintains continuous 360-degree pick rotation inside the pick box.

4. Total Cost of Ownership (TCO): The Economic Formula for Mine Managers

For mine managers, superintendents, and financial controllers, evaluating tool performance purely on initial unit purchase price leads to higher operational expenses. Real tooling cost is governed by the Total Cost of Ownership (TCO) and Cost-Per-Ton (CPT) equation:

Cost per Ton (CPT) = (Direct Pick Purchase Cost + Downtime Labor Costs + Holder Repair/Replacement Costs) / Total Extracted Tonnage (Tons)

Field Cost & Performance Evaluation: Standard vs. Laser-Cladded Mining Picks

The Hidden Costs of Underground Downtime

When a longwall shearer or roadheader stops for tool replacement:

• Continuous miners and shuttle cars sit idle, halting coal transportation networks.

• Electrical power and ventilation infrastructure continue running at full cost.

• Miners must perform tool change-outs in confined spaces near freshly cut rock faces, increasing human risk exposure under unsupported roofs.

By doubling or tripling tool lifespan with laser-cladded picks, mines significantly reduce machine downtime, improve shift extraction tonnage, and enhance underground operational safety.

5. Geological Matching & Tool Selection Guide

Selecting the proper pick configuration requires matching carbide grain size, shank geometry, and cladding area to your specific seam geology.

6. Underground Maintenance SOP: 4 Steps to Maximize Tool Life

Even the highest quality laser-cladded pick will fail prematurely if maintenance protocols are neglected underground. Follow these four maintenance steps to protect your cutter drums and pick boxes:

1. Conduct Daily Pick Box Inspection: Inspect pick box bores for internal scoring or ovalization. Replace worn retainer sleeves before inserting new cutter picks.

2. Verify Water Spray System Operation: Ensure internal and external dust suppression water jets are clear and pressurized. Water sprays cool the carbide tip, suppress dangerous sparks, and flush abrasive coal slurry out of sleeve clearances.

3. Promptly Remove Flat-Spotted Picks: If a pick exhibits a single-sided flat spot, remove it immediately. Running unspinning picks drastically accelerates pick box face erosion and increases gearbox fatigue on shearer drums.

4. Use Proper Extraction Tools: Always use dedicated hydraulic or mechanical pick pullers to remove worn picks. Striking picks with sledgehammers causes micro-fractures in adjacent carbide tips across the drum.

Conclusion & Actionable Summary

Underground cutting productivity is no longer determined solely by tungsten carbide tip hardness. In modern high-quartz coal seams and tough tunneling geologies, tool survival requires superior surface metallurgy and complete shank support.

While traditional arc welding overlays suffer from deep thermal damage, high dilution, and micro-cracking, High-Speed Laser Cladding Technology provides a dense, crack-free metal-ceramic matrix that eliminates shank erosion, prevents premature carbide tip loss, and encourages continuous 360-degree rotation.

By incorporating laser-cladded shearer picks and roadheader cutting picks into your underground fleet tooling strategy, mine operators eliminate unscheduled machine downtime, protect valuable cutter drums and pick boxes, and achieve the lowest possible cost-per-ton across every mining shift.
