Laser Ceramic 3D Printing vs. Traditional Hardfacing: How Surface Metallurgy Extends Cutting Pick Lifespan

In modern heavy-duty geotechnical operations—including asphalt pavement milling, deep foundation rotary drilling, underground coal mining, and tunneling—cutting picks operate under some of the most punishing tribological conditions in industry.

A standard conical cutting tool (also known as a bullet bit, milling pick, or cutter tooth) consists of two primary metallurgical components:

1. The Carbide Insert (Tip): Typically composed of Cobalt-bonded Tungsten Carbide (WC-Co), engineered for extreme hardness and rock-breaking capacity.

2. The Tool Body (Shank): Forged from high-strength alloy steel (such as 42CrMo or equivalent), designed to absorb intense mechanical shock and transfer torque from the machine drum.

While the tungsten carbide insert is built to withstand penetration forces, the underlying alloy steel body is significantly softer and inherently vulnerable to severe abrasion from high-velocity rock dust, sand, and asphalt aggregate. This vulnerability leads to a primary industry failure mode known as "body washout"—where the steel supporting the carbide tip erodes away, causing the expensive carbide tip to fracture or detach prematurely.

To counteract body washout, tool manufacturers apply wear-resistant surface coatings around the shoulder and body of the pick. However, the metallurgical method used to apply these coatings directly dictates field performance, machine efficiency, and long-term operating costs.

This comprehensive guide examines the technical, metallurgical, and economic differences between Traditional Hardfacing (Arc/Welding Overlays) and Advanced Laser Cladding (Metal-Ceramic Composite Technology).

Part 1: The Metallurgy of Surface Protection Methods

Understanding why tool bodies fail requires a closer look at the thermal and mechanical dynamics of surface application methods.

1. Traditional Hardfacing (Plasma Transferred Arc & MIG Welding)

Traditional hardfacing relies on high-temperature electric arcs (such as PTA or automated MIG welding) to deposit chromium-carbide or iron-based hardfacing wires onto the pick body.

While cost-effective in initial manufacturing, this process introduces significant metallurgical drawbacks:

• Excessive Heat-Affected Zone (HAZ): The sustained high temperature creates a broad thermal zone inside the forged alloy steel shank. This intense heat alters the grain structure of the heat-treated steel, causing localized annealing and softening the metal directly beneath the carbide insert.

• High Dilution Rates: The molten weld pool mixes heavily with the base steel (often achieving dilution rates between 10% and 25%). This dilutes the hardfacing alloy, lowering its effective hardness and abrasive resistance at the outer working edge.

• Thermal Micro-Cracking: Because the steel substrate and the hardfacing layer have vastly different coefficients of thermal expansion, rapid cooling after arc welding frequently induces micro-cracks throughout the protective matrix, creating points of early failure under shock loads.

2. Advanced Laser Cladding (Metal-Ceramic Composites)

Laser cladding utilizes a computer-controlled, high-power density laser beam to precisely generate a localized melt pool on the substrate surface while simultaneously injecting specialized metal-ceramic powders (such as spherical tungsten carbide particles dispersed in a tough nickel- or cobalt-based alloy matrix).

• Micro-Heat Input & Zero Substrate Annealing: The laser energy is applied in milliseconds and dissipates almost instantly. The heat-affected zone is negligible, meaning the forged steel shank retains its original core hardness and high impact toughness.

• Low Dilution (< 5%): The laser melts only a micro-thin surface layer of the base steel, creating a genuine, high-strength metallurgical bond with virtually zero dilution of the protective material.

• Denser, Homogeneous Microstructure: Rapid solidification rates during laser processing produce an ultrafine metallurgical structure. The ceramic carbide particles remain evenly distributed without sinking, thermal degradation, or premature dissolution into the matrix.

Part 2: Field Mechanical Impact: Solving The "Body Washout" Problem

In field operations, the primary metric of cutting tool quality is not merely how hard the tip is, but how well the body supports that tip over hundreds of operating hours.

1. The Anatomy of Body Washout

During rock cutting or pavement planing, fine abrasive particles (quartz, granite fines, crushed aggregate) are swept backward by the cutter head at high velocity. This slurry acts like a industrial sandblaster against the steel tool body.

If the steel body wears away faster than the carbide tip:

1. The carbide insert loses its lateral steel support matrix.

2. Under heavy oblique impacts (such as striking embedded boulders or steel rebar), the unsupported carbide insert experiences bending stress and snaps off at the braze joint (macro-fracture).

3. The remaining steel shank rapidly disintegrates against the rock face, causing immediate damage to the internal toolholder sleeve and block.

2. How Laser Cladding Prevents Washout and Encourages Self-Rotation

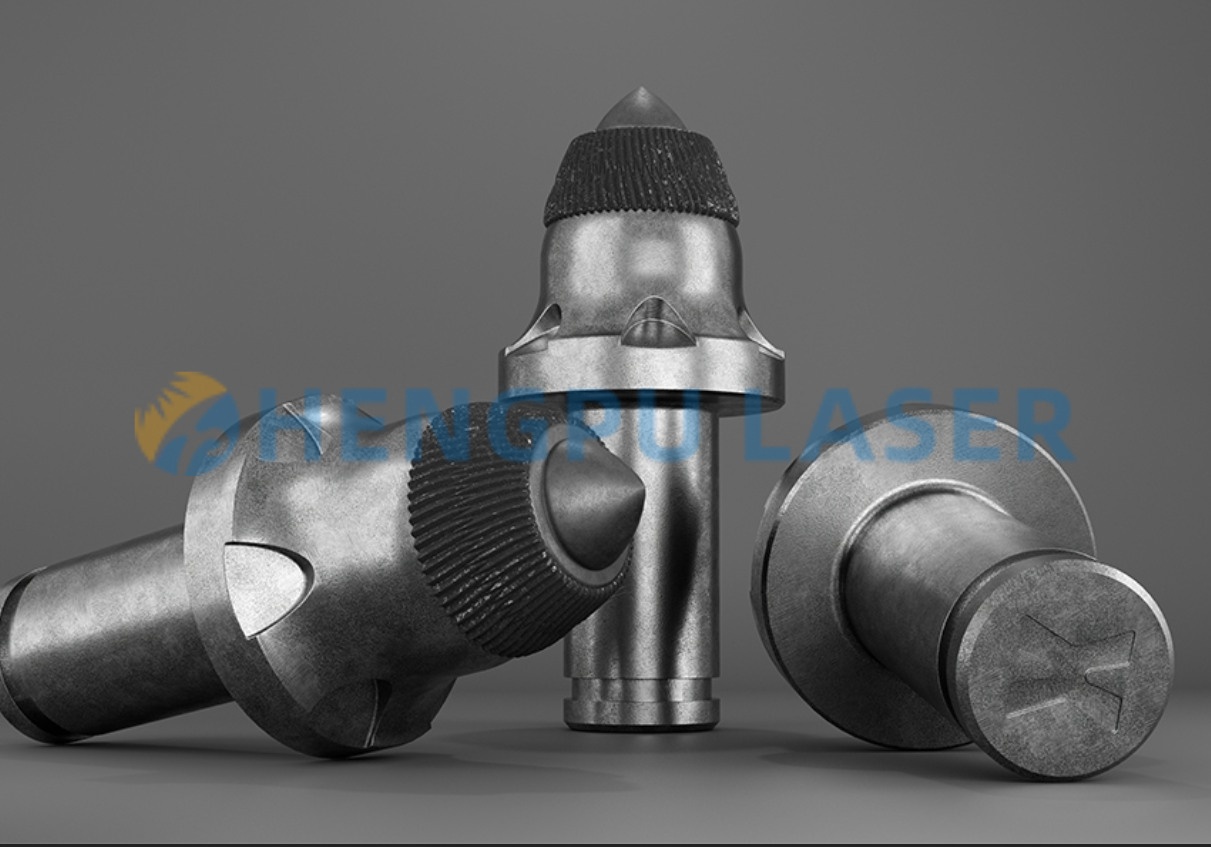

By applying a uniform, automated band of laser-cladded metal-ceramic reinforcement directly around the shoulder area:

• Shielding the Braze Joint: The cladded layer forms an impenetrable barrier around the brazing zone, preventing abrasive slurry from undermining the carbide base.

• Symmetrical Wear & Rotation: Because laser cladding is applied with CNC precision, the coating thickness is perfectly concentric. As the pick engages the working face, the uniform resistance encourages the pick to rotate freely within its holder. This prevents asymmetrical wear (flat-spotting) and ensures the entire 360-degree surface of the tool wears down evenly.

• Maximum Carbide Utilization: Instead of discarding tools early due to body collapse, operators can safely wear down 80% to 90%+ of the tungsten carbide tip, achieving maximum utility from every gram of carbide.

Part 3: Total Cost of Ownership (TCO): The Engineering Economics

For project managers and procurement officers, the true cost of a cutting pick is never its purchase price—it is its Cost-Per-Meter (CPM) or Cost-Per-Ton (CPT).

The Real Cost Equation:

Cost per Meter=（Tool Initial Cost + Downtime Labor Cost + Holder Damage Cost）/ Total Meters Milled or Drilled

Let's compare the operational economics of standard picks versus laser-reinforced picks on a hypothetical highway milling or deep rock drilling contract:

The Hidden Costs of Machine Downtime

When a milling drum or rotary drill rig must stop for tool replacement:

• Heavy machinery sits idle while burning diesel or electricity.

• Operator labor costs continue to accumulate.

• Heat cycles on the cutter drum cool down and re-heat, stressing weld joints.

• Project schedules face delays, risking liquid damages or penalties.

By doubling or tripling tool wear life through advanced laser-cladded surface metallurgy, the reduced downtime alone often pays for the upgraded tooling cost multiple times over.

Part 4: Industry Applications & Selection Recommendations

Not every job site requires the same technical configuration. Matching the surface protection method to your specific geology is key to optimizing performance.

1. Asphalt Road Milling & Pavement Rehabilitation

In high-speed road milling, fine granite and basalt aggregates create intense slurry abrasion. Picks protected with a concentric laser-cladded shoulder ring preserve sleeve clearance, maintain active pick rotation, and prevent flat-spotting across large-scale highway rehabilitation projects.

2. Rotary Foundation Drilling & Diaphragm Walls

When drilling through boulder-laden clay, weathered sandstone, or reinforced concrete, cutting picks experience severe dynamic shock. Standard hardfacing often cracks under these heavy impacts. Laser-cladded picks maintain high underlying steel toughness, allowing the shank to absorb shock while resisting severe soil gouging.

3. Continuous Mining & Tunneling (Roadheaders)

Underground mining equipment operates in highly confined spaces where changing tools is labor-intensive and hazardous. Maximizing tool longevity with full-coverage metal-ceramic laser cladding ensures continuous production, lowers thermal stress on cutter heads, and improves overall underground safety.

Conclusion

The cutting pick industry has evolved beyond simple tungsten carbide tip design. Today, peak productivity is achieved through advanced surface metallurgy.

While traditional arc-based hardfacing was once the industry norm, its high heat input, deep dilution, and micro-cracking limitations fall short in high-abrasion, high-impact environments. Laser cladding technology bridges the gap between high-strength alloy steel and extreme wear resistance—delivering crack-free, dense, metal-ceramic protective layers that eliminate body washout, preserve toolholder integrity, and drive down your operational cost-per-meter.
