In underground mining and tunnel construction projects, the performance of roadheader cutting picks directly affects excavation efficiency, cutting head maintenance, tool consumption, and overall operating cost. When a roadheader works continuously in abrasive rock, mixed ground, or hard geological formations, conventional cutting picks can experience rapid carbide wear, tip breakage, shank abrasion, or premature failure.
For this reason, selecting the right roadheader cutting picks is not simply a matter of matching dimensions. The carbide grade, pick geometry shape, steel body strength, brazing quality, surface wear protection, and cutting conditions all play an important role in determining tool performance.
At Hengpu Laser, we focus on developing high-performance roadheader cutting picks and tunneling picks by combining advanced carbide technology with our proprietary advanced laser-based metal-ceramic wear-resistant technology.

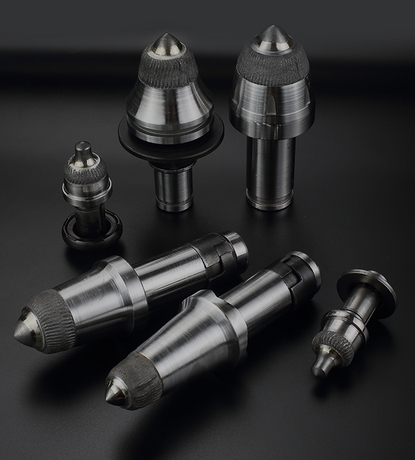

A roadheader cutting pick, also known as a tunneling pick, mining pick, bullet tooth, or carbide cutting pick, is a critical consumable mounted on the cutting head of a roadheader machine.
During excavating, the rotating cutting head forces the picks into the rock or mineral formation. The carbide tip penetrates the material while the steel shank transfers cutting forces and impact loads to the cutter head.
Depending on geological conditions and machine configuration, roadheader picks may be used for:
Underground coal mining
Hard rock tunneling
Metal and non-metal mining
Subway and railway tunnel construction
Hydropower and water-diversion tunnels
Other underground excavation projects
In these applications, cutting tools are exposed to repeated impact, high contact pressure, severe abrasion, and thermal and mechanical stresses. Therefore, a high-quality roadheader pick must achieve a careful balance between impact toughness and wear resistance.
The service life of a cutting pick is determined by more than the hardness of its carbide tip.
Several common failure mechanisms can significantly increase tool consumption:
When the cutting head encounters hard inclusions, fractured rock, or unexpected impact loads, excessive stress can concentrate around the carbide tip.
If the carbide grade or brazed interface is not properly matched to the operating conditions, the tip may crack or break prematurely.
The steel body of a conventional cutting pick is exposed to abrasive rock particles and cutting debris. Continuous contact with highly abrasive formations can gradually remove material from the shank.
Once the shank becomes excessively worn, the pick may lose its designed cutting geometry and become more vulnerable to bending or breakage.
The cutting angle, pick orientation, geological conditions, and cutter-head design can cause uneven wear.
A worn pick may require more cutting force, increasing energy consumption and potentially accelerating wear on adjacent components.
Premature pick failure means more frequent machine stoppages for inspection and replacement.
In underground projects, the cost of a cutting pick is only one part of the total expense. Downtime, labor, reduced excavation efficiency, and additional maintenance can have a much greater impact on project economics.

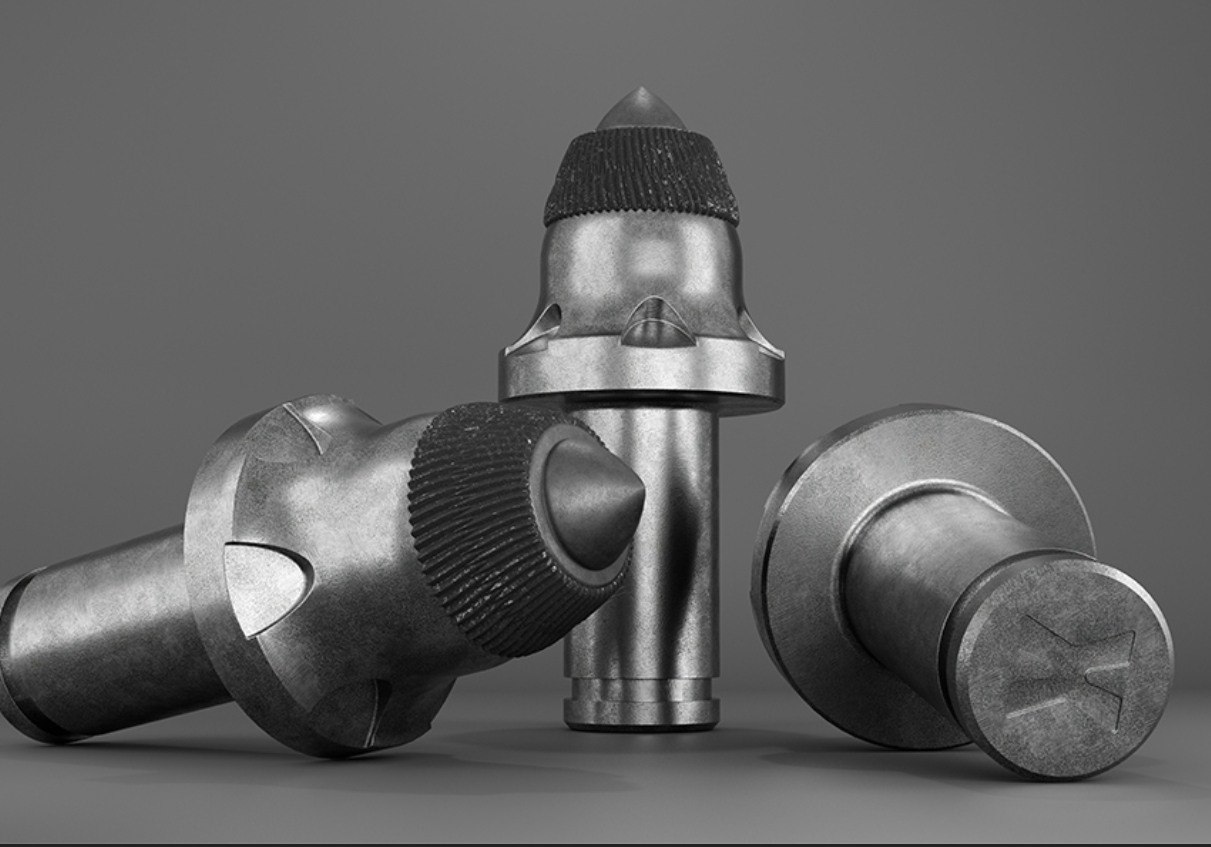

Hengpu Laser has developed a range of ceramic 3D printed roadheader picks and carbide bullet teeth for demanding mining and tunneling applications.
Our cutting tools combine high-strength alloy steel bodies and tungsten carbide cutting elements with advanced laser-based wear-resistant surface technology.
Unlike simply increasing material hardness, our approach focuses on creating a functional metal-ceramic composite wear-resistant layer in critical areas of the cutting tool.
This technology is designed to provide additional protection to the steel body against severe abrasive wear while maintaining the mechanical integrity required for repeated impact loading.
Traditional hardfacing methods can provide surface protection, but the performance of a wear-resistant layer depends heavily on bonding quality, metallurgical compatibility, thickness control, and the specific operating environment.
Hengpu Laser applies advanced laser technology to precisely control the formation of the wear-resistant layer.
The resulting metal-ceramic composite structure is designed to combine:
High substrate toughness + strong metallurgical bonding + localized wear resistance
This enables the cutting tool to maintain better protection in areas exposed to severe abrasive wear without simply relying on an excessively hard and brittle surface.
Our ceramic laser-based technology is one of the key differences between Hengpu Laser cutting tools and conventional roadheader picks.
The carbide tip is the primary cutting element of a roadheader pick.
Tungsten carbide provides the hardness and wear resistance required for rock penetration, while the carbide grade must also possess sufficient toughness to withstand repeated impact.
Hengpu Laser evaluates carbide selection according to different working conditions, including:
Rock hardness
Rock abrasiveness
Impact intensity
Cutting speed
Machine power
Cutting head configuration
Expected tool consumption
Underground operating conditions
Instead of applying one carbide specification to every application, the objective is to achieve a practical balance between wear resistance and impact resistance.
For hard-rock tunneling and demanding mining applications, this balance becomes particularly important.
A roadheader cutting pick does not work through the carbide tip alone.
The steel body must withstand repeated mechanical loading and transfer cutting forces efficiently from the carbide tip to the cutting head.
Hengpu Laser therefore pays attention to the complete pick structure, including:
Alloy steel body
Heat-treatment performance
Carbide tip geometry
Brazed joint integrity
Pick dimensions and tolerances
Wear-resistant surface protection
Compatibility with the cutter holder
A properly engineered cutting pick should function as an integrated system rather than as a carbide tip simply attached to a steel shank.
There is no single roadheader pick that provides optimum performance in every geological formation.
For relatively soft and less abrasive formations, cutting efficiency and penetration may be prioritized.
For hard and abrasive rock, higher wear resistance and impact durability become more important.
For mixed geological conditions, the pick must tolerate frequent changes in cutting resistance and impact loading.
Therefore, when selecting roadheader cutting picks, contractors and mining companies should consider the actual geology rather than selecting tools only according to machine model or dimensions.
Important parameters include:
Rock strength + abrasiveness + geological variability + machine power + cutting head configuration
This is also why Hengpu Laser provides cutting-tool solutions based on application requirements, technical drawings, samples, and existing pick specifications.
The purchase price of a cutting pick is only one component of its actual operating cost.
A more meaningful evaluation is the cost associated with the entire excavation process.
A high-performance roadheader pick can potentially contribute to:
Longer service intervals
Reduced pick consumption
Fewer unexpected tool failures
Lower replacement frequency
Reduced machine downtime
More stable cutting performance
Improved excavation productivity
For mining and tunneling contractors, the key metric should therefore be cost per meter, cost per cubic meter, or cost per ton excavated, rather than simply the purchase price of an individual pick.
This lifecycle approach is particularly important in large-scale underground projects where hundreds of cutting tools may be operating simultaneously.
Hengpu Laser is committed to developing advanced cutting picks, roadheader picks, mining picks, rotary cutting picks, and other wear-resistant engineering tools for demanding industrial applications.
Our core technology combines advanced laser processing with metal-ceramic composite materials to improve wear protection in critical working areas.
Today, Hengpu Laser cutting tools are developed for applications including:
Roadheader and tunneling
Underground coal mining
Road milling
Rotary foundation drilling
Excavation and other heavy-duty applications
Our goal is not simply to manufacture replacement cutting picks.
We aim to provide application-oriented wear solutions that help mining and tunneling customers improve tool reliability, reduce consumable consumption, and achieve better lifecycle economics.
If you are sourcing roadheader picks, tunneling picks, carbide bullet teeth, tungsten carbide cutting picks, or customized mining cutting tools, Hengpu Laser can provide application-based recommendations according to your machine, geological conditions, existing pick specifications, and operating requirements.
Contact Hengpu Laser to discuss your roadheader cutting tool requirements and find the right solution for your excavation application.
