In foundation construction, the performance of rotary drilling picks(Bullet Teeth) can directly influence drilling efficiency, tool consumption, maintenance frequency, and the overall cost of bored pile construction.
From high-rise building foundations and bridge piles to metro infrastructure and large-scale civil engineering projects, rotary drilling rigs often encounter a challenging combination of abrasive soil, gravel, weathered rock, fractured formations, and hard rock layers. Under these conditions, conventional cutting picks may experience rapid body wear, carbide tip damage, or premature failure.
For contractors, equipment manufacturers, and drilling tool distributors, the challenge is not simply finding a replacement tooth at a competitive price. It is selecting a wear-resistant foundation drilling pick that matches the geological conditions, drilling equipment, and operating requirements.
At Hengpu Laser, we combine tungsten carbide cutting technology, high-strength alloy steel, and proprietary laser ceramic 3D-printing technology to develop rotary cutting picks for demanding foundation drilling and infrastructure applications.
This article explains the major causes of rotary drilling pick wear, the role of laser ceramic wear-resistant layers, and the key factors to consider when selecting foundation drilling tools.
Rotary drilling picks, also known as foundation drilling picks, rotary cutting picks, or bullet teeth, are replaceable cutting components installed on drilling tools such as rotary drilling buckets, augers, and other compatible excavation attachments.
During drilling, the rotating tool applies mechanical force to the ground. The carbide cutting tip penetrates or fractures the material, while the steel body transfers the load to the tool holder.
Depending on the drilling tool configuration and geological conditions, rotary drilling picks are used in applications including:
Bored pile foundation construction
High-rise buildings and commercial developments
Highway and railway infrastructure
Bridge foundations and viaduct construction
Metro stations and underground structures
Water conservancy and other civil engineering projects
Different applications require different pick geometries, carbide grades, body dimensions, and wear protection strategies. A pick designed for abrasive soil or weathered rock may not deliver the same performance in hard, fractured rock.
The right rotary drilling pick must be selected according to both ground conditions and the drilling tool system.
The service life of a foundation drilling pick depends on more than the hardness of its tungsten carbide tip. The steel body, carbide-to-body connection, holder compatibility, and actual cutting conditions all influence performance.
Sand, gravel, quartz-bearing formations, and crushed rock can progressively erode the steel around the cutting tip.
As the body wears, the carbide tip may lose some of its supporting material. Even if the carbide itself remains relatively intact, excessive body wear can compromise the cutting profile and increase the risk of tip damage or detachment.
This is a critical failure mechanism because the entire pick may need to be replaced before the carbide has reached the end of its useful life.
Tungsten carbide provides excellent hardness and abrasion resistance, but the appropriate carbide grade must also withstand the impact loads generated during drilling.
Hard rock, boulders, fractured formations, and sudden changes in cutting resistance can produce severe mechanical stress. If the carbide grade, tip geometry, or operating conditions are poorly matched, chipping and fracture may occur.
The objective is not simply to maximize hardness. It is to achieve the right balance between wear resistance and impact toughness.
A rotary drilling pick operates as part of a complete system that includes the holder, drilling bucket or auger, and cutting arrangement.
Incorrect shank dimensions, an unsuitable retaining system, or improper installation can interfere with the intended movement and loading of the pick. Depending on the design, this may contribute to abnormal wear, poor load transfer, or holder damage.
Dimensional compatibility is therefore just as important as material performance when sourcing replacement rotary drilling teeth.
Every premature pick failure can create additional costs, including replacement labor, inspection time, equipment interruption, and reduced drilling output.
For projects with tight schedules or large pile quantities, these indirect costs can exceed the purchase price of the cutting tool itself.
This is why evaluating rotary drilling picks by cost per drilled meter or cost per completed pile is often more meaningful than comparing unit prices alone.
Hengpu Laser develops rotary excavator picks that combine three essential elements:
Tungsten carbide cutting tips for cutting performance and abrasion resistance.
High-strength alloy steel bodies designed to withstand the mechanical demands of drilling.
Proprietary laser ceramic 3D-printed wear-resistant layers to protect critical areas exposed to severe abrasion.
Rather than relying on a single material to handle every type of stress, this integrated approach addresses the different functions performed by the cutting tip and the supporting steel body.
Tungsten carbide is widely used in foundation drilling tools because of its hardness and resistance to abrasive wear.
However, the most suitable carbide specification depends on the geological formation, impact intensity, cutting geometry, and drilling parameters.
Hengpu's rotary drilling pick range includes different models designed for different ground conditions. The company's published product specifications associate selected models with nominal rock-strength ranges from 0–50 MPa through to above 150 MPa.
These ranges are product-selection references, not universal guarantees of performance. Actual suitability depends on rock characteristics, abrasiveness, machine power, drilling method, and tool configuration.
Matching the carbide tip and pick geometry to the application helps establish a more appropriate balance between penetration, wear resistance, and resistance to mechanical damage.
The steel body must support the carbide tip and transmit mechanical loads throughout the drilling process.
Hengpu's published rotary drilling pick design combines tungsten carbide tips with high-strength 42CrMo steel shanks and a quenching process.
The purpose is to provide a robust structural foundation for the cutting element while accommodating the demands of repeated loading.
Material selection alone, however, does not determine service life. Heat treatment, machining accuracy, tip attachment, holder fit, and actual working conditions must also be considered.
One of Hengpu Laser's key technological differentiators is its proprietary laser ceramic 3D-printing technology for wear-resistant metal-ceramic composite layers.
Conventional rotary drilling picks primarily depend on the wear resistance of the carbide tip and the durability of the steel body. When abrasive ground progressively removes the surrounding steel, the cutting tip may lose support before the carbide has been fully utilized.
Hengpu's laser-based process is designed to introduce a ceramic composite wear-resistant layer into selected high-wear areas of the pick body.
The objective is to improve localized abrasion resistance while retaining the structural function of the underlying metal.
We can produce ceramic wear-resistant layers up to 4 mm thick, with material options including alumina (Al₂O₃), zirconia (ZrO₂), and silicon carbide (SiC).
The appropriate ceramic composition, layer geometry, and thickness depend on the component design and application requirements.
Why does this matter?
A wear-resistant layer is valuable only when it addresses the actual failure mechanism. For foundation drilling picks, the engineering objective is to slow critical body wear, preserve carbide support, and help maintain the intended cutting profile under abrasive operating conditions.
Actual service-life improvement should be verified through field testing under comparable geological and operating conditions.
The key distinction is the engineering approach to wear management.
Conventional cutting picks generally rely on the carbide tip, steel body, and standard material or surface-treatment specifications to achieve the required durability.
Hengpu's design adds a localized metal-ceramic wear-resistant layer to selected areas where abrasion can become a limiting factor.
The comparison below describes the design approaches rather than guaranteeing a fixed performance advantage in every application.
Evaluation factor | Conventional pick design | Hengpu laser ceramic wear-resistant design |
|---|---|---|
Cutting element | Tungsten carbide tip | Tungsten carbide tip |
Supporting body | Alloy steel body | High-strength alloy steel body |
Body wear protection | Depends on base material and any conventional surface treatment | Localized laser ceramic composite wear layer |
Wear management | Primarily determined by the overall pick design and materials | Adds targeted protection to selected high-wear areas |
Application selection | Based on geometry, materials, and operating conditions | Also considers wear-layer design and the dominant wear mechanism |
Performance verification | Field trials and service records | Field trials and service records under comparable conditions |
The benefit of the technology should be assessed in the field. Geological abrasiveness, impact loading, drilling parameters, and installation conditions can all affect the result.
For contractors and distributors sourcing rotary drilling picks, the following factors are important when evaluating product suitability.
Identify whether the application involves abrasive soil, gravel, weathered rock, fractured rock, or hard formations. If the bore passes through multiple layers, describe the expected sequence rather than providing only the hardest rock encountered.
Provide the rotary drilling rig model where relevant, together with the drilling bucket, auger, or other attachment type.
The cutting pick must match the holder and attachment configuration. Machine brand alone is not sufficient to establish dimensional compatibility.
Confirm the shank diameter, overall length, head geometry, retaining-ring or circlip arrangement, and any relevant technical drawing.

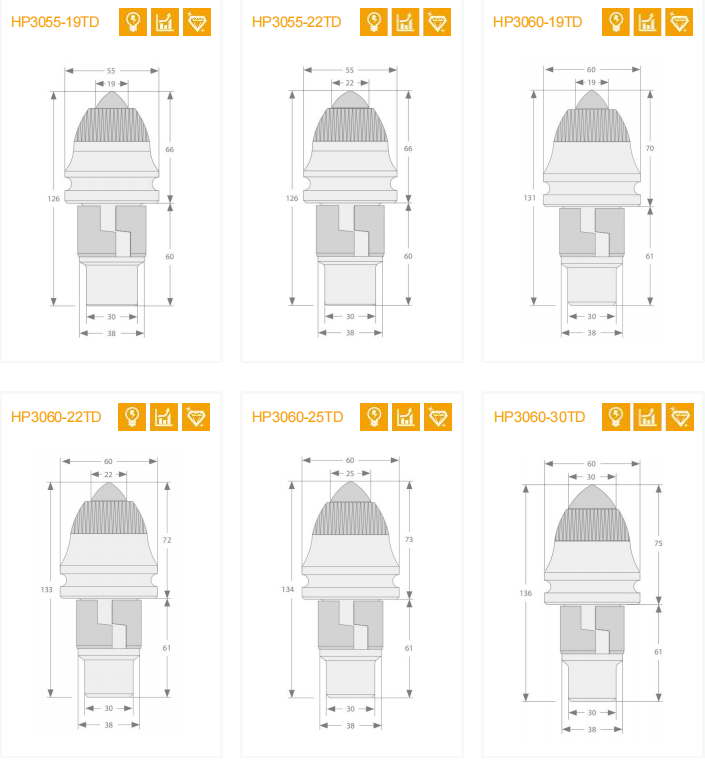

Hengpu publishes models including HP3050-22TD, HP3055-19TD, HP3055-22TD, HP3060-19TD, HP3060-22TD, HP3060-25TD, and HP3060-30TD. These are examples from the existing product range; final selection should be confirmed against the required dimensions and working conditions.
If existing picks wear too quickly, identify where the damage occurs:
Carbide tip chipping or fracture
Steel body erosion around the tip
Uneven wear across the pick
Retention or holder damage
Premature replacement despite remaining carbide material
Photographs of used picks can help distinguish between material wear, impact-related damage, and possible installation issues.
When comparing alternative picks, record the number of picks consumed, drilling output, replacement frequency, labor time, and any associated downtime.
Where possible, conduct a controlled comparison using comparable ground conditions, drilling equipment, and operating parameters.
The most economical pick is not necessarily the one with the lowest purchase price. It is the one that provides the most suitable balance of performance, reliability, and total operating cost for the application.
Hengpu Laser specializes in wear-resistant engineering components for mining, foundation construction, infrastructure, and other demanding industrial applications.
Our technical focus includes laser ceramic 3D printing, metal-ceramic composite wear protection, and application-oriented cutting tool development.
For rotary drilling and foundation construction, our capabilities include:
Tungsten carbide alloy tip foundation drilling picks
Multiple pick geometries and dimensional specifications
High-strength steel shanks
Laser ceramic wear-resistant technology
Application-based product selection
Customized solutions based on drawings, samples, and equipment requirements
Our rotary drilling picks are developed for compatible equipment used in bored pile foundations, highway and railway projects, bridge construction, urban infrastructure, and related excavation applications.
We understand that contractors and distributors need more than a product catalogue. They need a tool that fits the equipment, addresses the actual wear mechanism, and performs reliably under the intended working conditions.
Our objective is to help customers evaluate cutting tool performance from a full-lifecycle perspective.
Rotary drilling picks are replaceable cutting components installed on compatible rotary drilling tools, including drilling buckets and augers. They are used to penetrate or break ground during bored pile foundation construction and related excavation work.
The terms often overlap in commercial use. “Foundation drilling picks” emphasizes the construction application, while “rotary drilling picks” describes the cutting tools used with rotary drilling equipment. The actual product must be selected according to its dimensions, holder arrangement, and intended operating conditions.
Yes, suitable rotary drilling picks can be used in hard-rock applications, provided that the carbide grade, geometry, body design, and drilling tool configuration match the formation and operating parameters. Rock strength alone is not enough to determine suitability.
A laser ceramic composite layer is designed to improve abrasion resistance in selected areas of the steel body. In applications where body wear is the limiting factor, this protection may help preserve carbide support and extend useful tool life. The actual benefit depends on the wear mechanism and should be verified through field trials.
Provide your current pick model or technical drawing, shank diameter, overall length, holder configuration, drilling tool type, and geological conditions. Photos of the existing pick and its wear pattern are also useful. Hengpu can then assess the dimensional and application requirements and recommend a suitable model.
